Ventilation lattices

Inner ventilation louvered grille (RAG)

Functionality

RAG fixed ventilation louvered grilles are designed for distribution of air supply/removal in multifunctional rooms.

Design

Ventilation grille is made of aluminium alloy with fixed louvres installed. RAG fixed ventilation grilles without dumper.

Ventilation grille designation at order (all dimensions are in mm)

RAG grille schematic design

Price list for RAG fixed grille

download

Inner ventilation louvered grille (RAR)

Functionality

RAR ventilation adjustable grilles are designed for distribution of air supply/removal in multifunctional rooms.

Design

Ventilation grille is made of aluminium alloy with moving louvres installed. RAR movable ventilation grilles with dumper.

Ventilation grille designation at order (all dimensions are in mm)

RAR grille schematic design

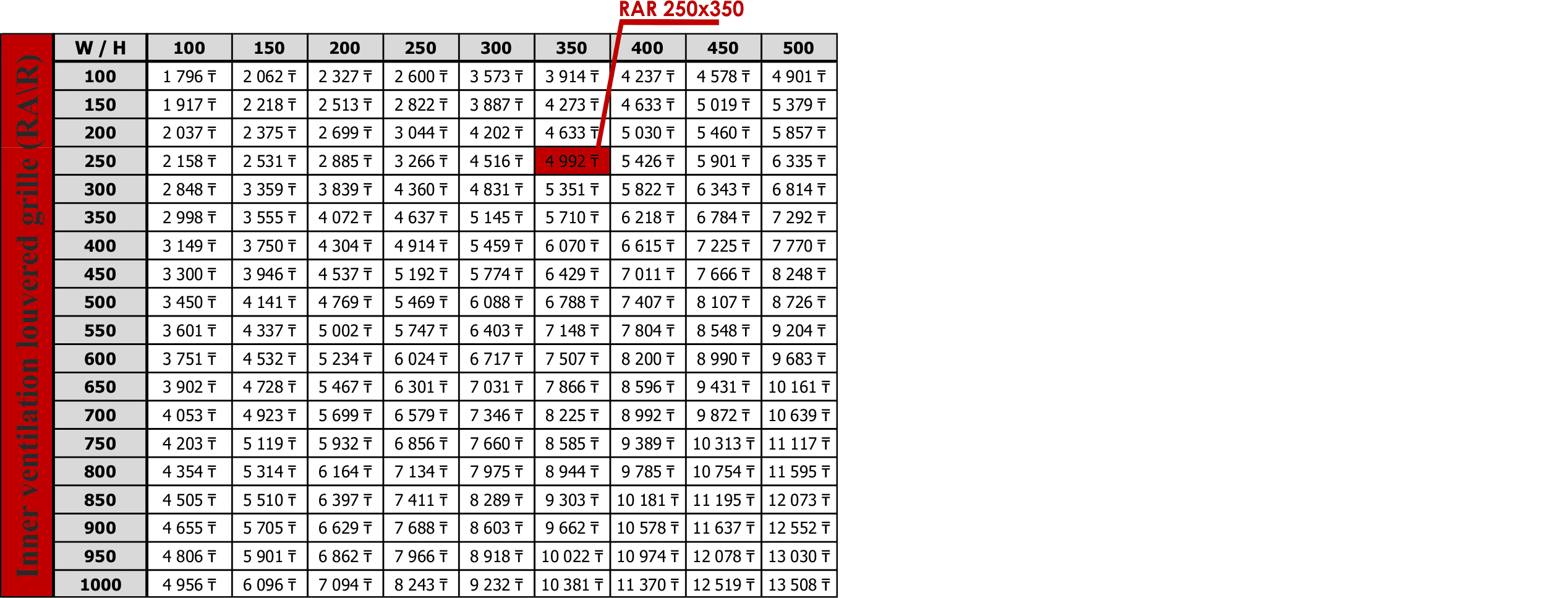

Price list

download

Outdoor ventilation grilles (EAL)

Functionality

EAL fixed outdoor ventilation grilles are designed for distribution of air supply/removal in multifunctional rooms by air ventilation and conditioning systems including variable volume systems.

Design

Ventilation grille is made of aluminium alloy with fixed louvres installed.

Ventilation grille designation at order (all dimensions are in mm)

EAL grille schematic design

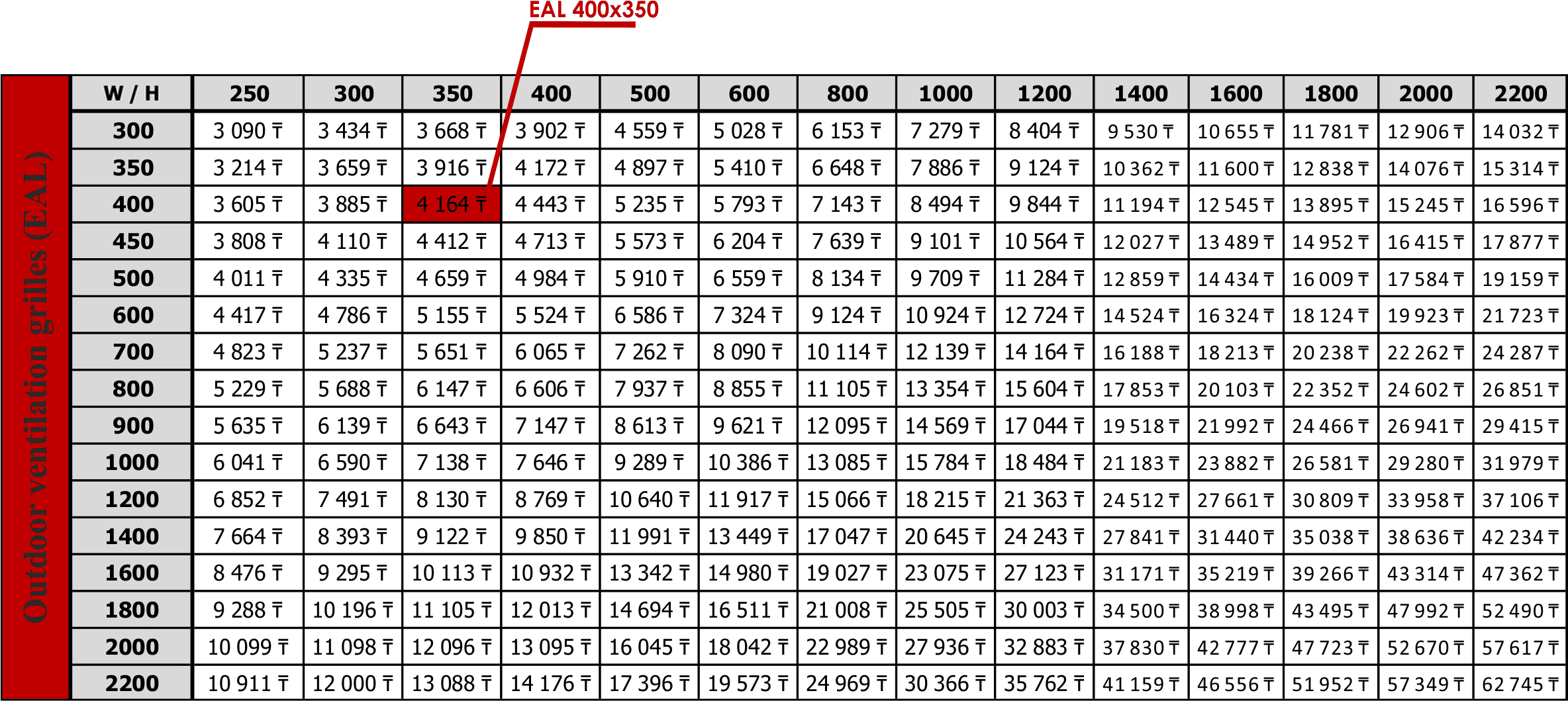

Price list for EAL

download

Collective slot diffuser (RLD)

Functionality

Collective slot diffuser is designed for distribution of air supply/removal in multifunctional rooms by air ventilation and conditioning systems including variable volume systems.

Design

Diffusers are made of aluminium alloy and painted by powder spraying method in colour at the customer’s request.

Ventilation grille designation at order (all dimensions are in mm)

RLD diffuser schematic design

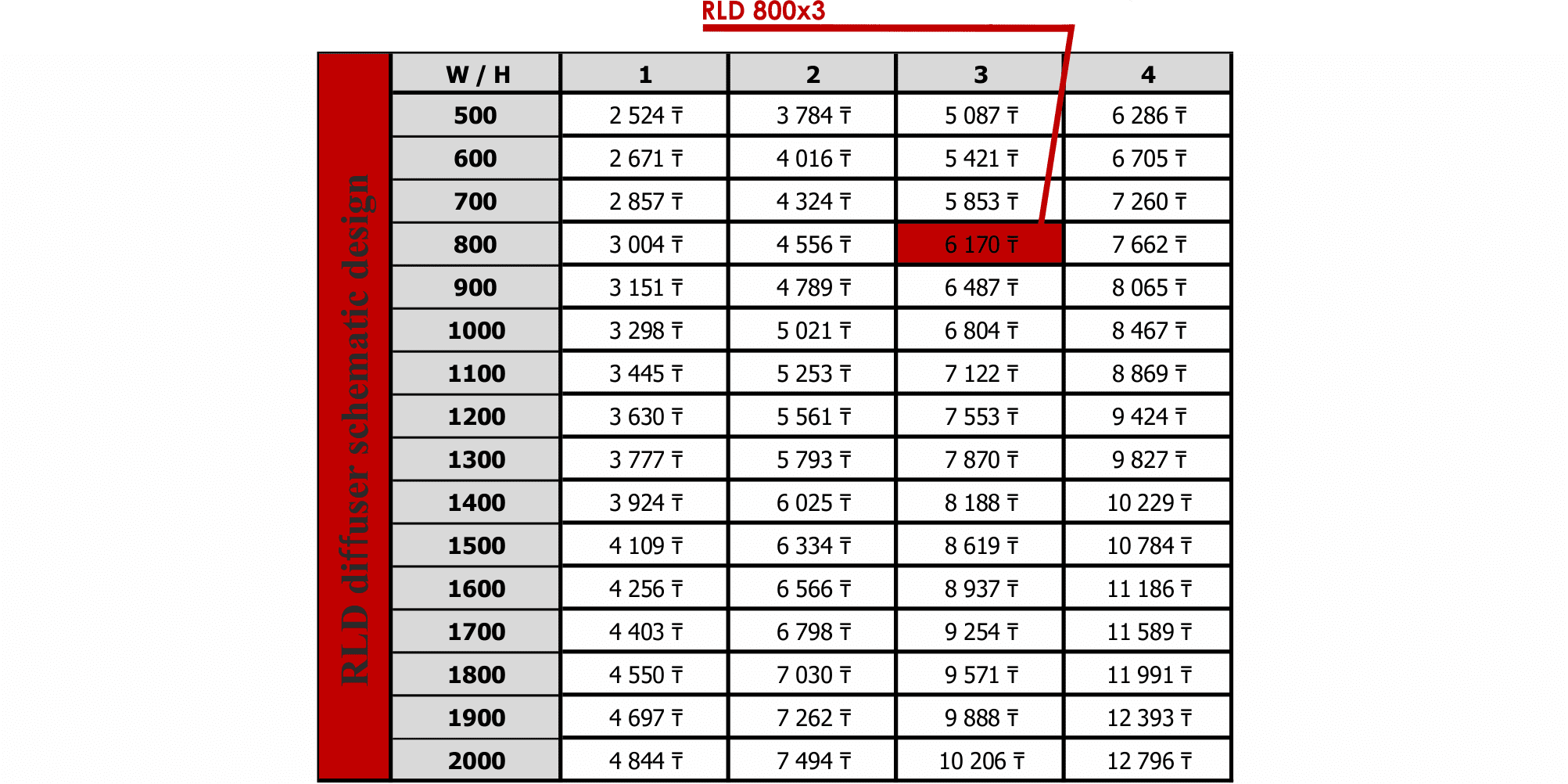

Price list for RLD

download

RAD and SAD ceiling diffusers

Functionality

Vented Diffuser is designed for distribution of air supply/removal in multifunctional rooms by air ventilation and conditioning systems including variable volume systems.

Design

Ceiling diffusers are made of aluminium alloy. The key feature of the diffuser is the air supply to four sides simultaneously.

Ventilation grille designation at order (all dimensions are in mm)

RAD and SAD ceiling diffusers schematic design

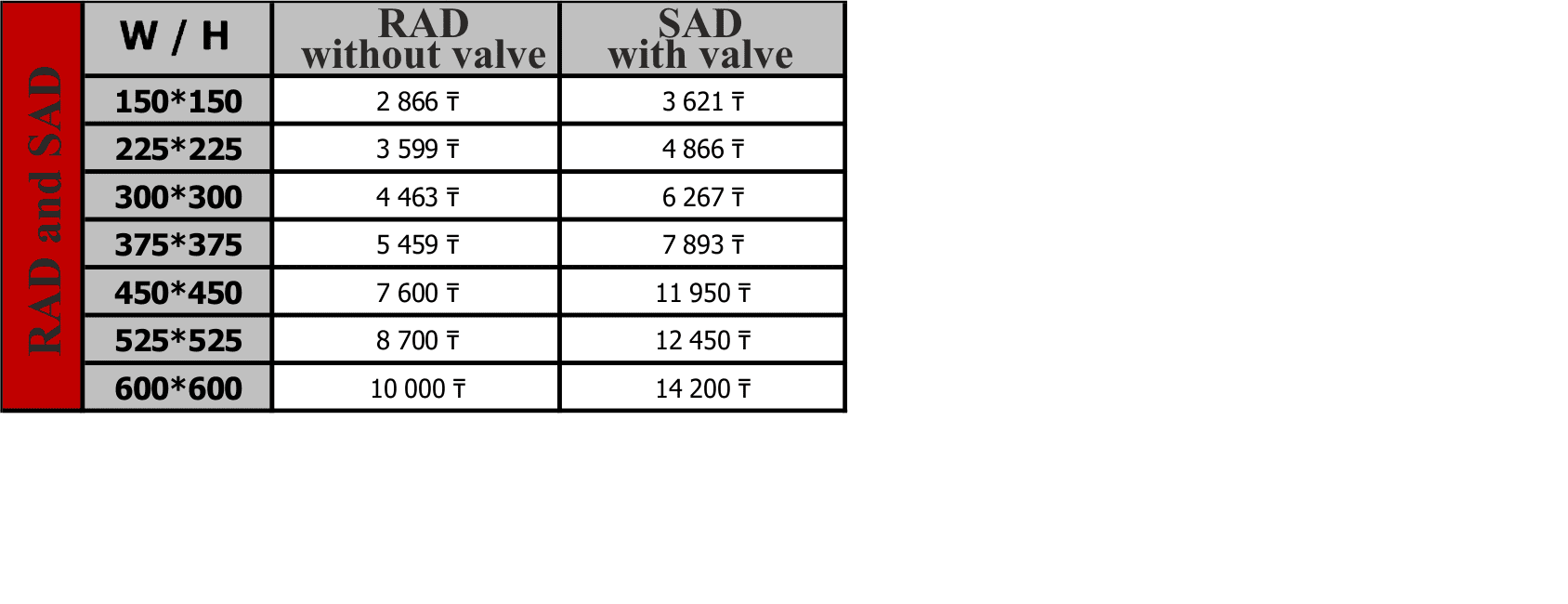

Price list for RAD and SAD ceiling diffusers

download
